Map Markers

Understanding Map Markers and Cable Runs on Your Site Plan

A Solar Site Plan is a bird's-eye view of a property that identifies where all system components will be physically installed. Map Markers act as precise digital anchors on this plan, pinpointing the location of essential hardware such as the Inverter (INV), Battery (BATT), and Main Switchboard (MSB).

Beyond just equipment, the site plan also illustrates Cable Runs, which are the represented paths for DC wiring (from the solar modules to the inverter) and AC wiring (from the inverter to the switchboard). These runs are critical for calculating voltage drop and ensuring the installation meets regulatory standards for cable containment and routing. By accurately placing these markers and paths, designers provide installers with a clear blueprint for the job and provide network providers with the necessary documentation for grid connection approval.

How to add Map Markers in SolarPlus

Adding Map Markers: Recommended Workflow

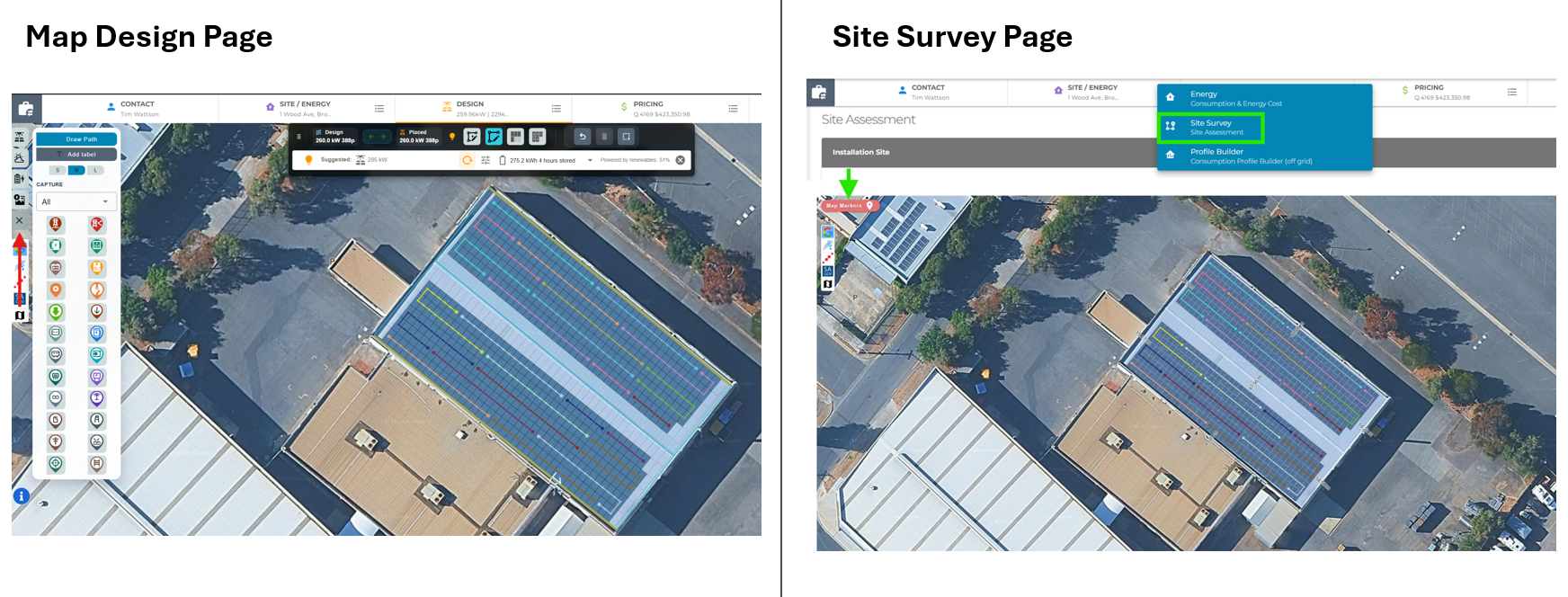

You can add Map Markers via the Map Design page or the Site Survey page. For a faster and more reliable experience, SolarPlus recommends using the Site Survey page.

Why use the Site Survey page?

• Faster Loading: It loads only the markers, making the interface more responsive.

• Precision: It locks your panel layouts and system design, preventing accidental changes to your surface or stringing while you place icons.

• Focused Editing: It provides a cleaner workspace dedicated specifically to equipment locations and cable routing.

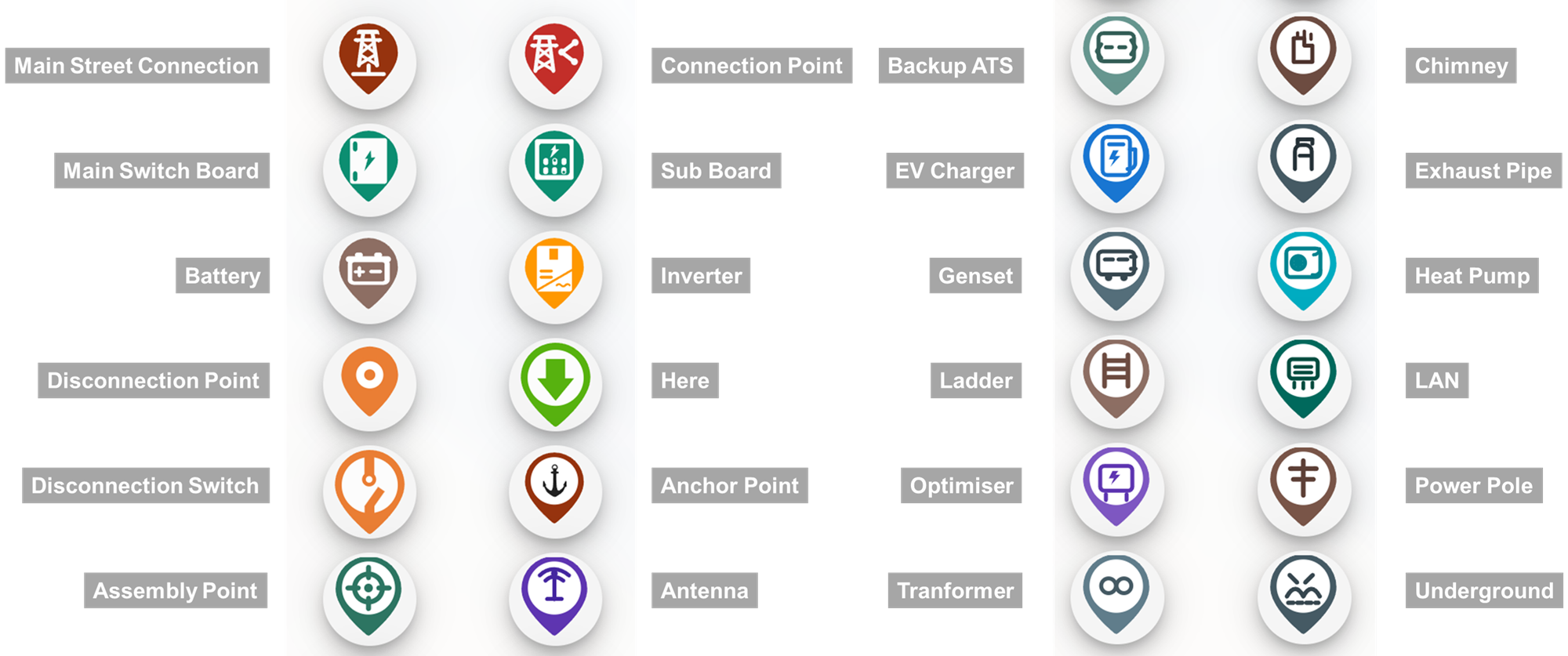

Here are the Available Map Markers:

Advanced Site Survey Features: Labels and Paths

In addition to placing markers, you can further detail your site plan using Labels and Paths to provide clear instructions for installation teams.

Custom Labels

You can add text labels to any part of your map to identify specific site features or provide notes. To keep the plan readable, you can toggle between three label sizes:

• Small

• Medium

• Large

Drawing Paths

To represent physical runs and safety measures, you can draw four distinct types of paths:

1. Cable Run: The standard path for AC or DC electrical wiring.

2. Underground Cable: Specifically for trenching or sub-surface conduits.

3. Edge Protection: For marking out safety railing or fall-arrest zones.

4. Walkway: To indicate designated safe access paths on the roof or ground.
