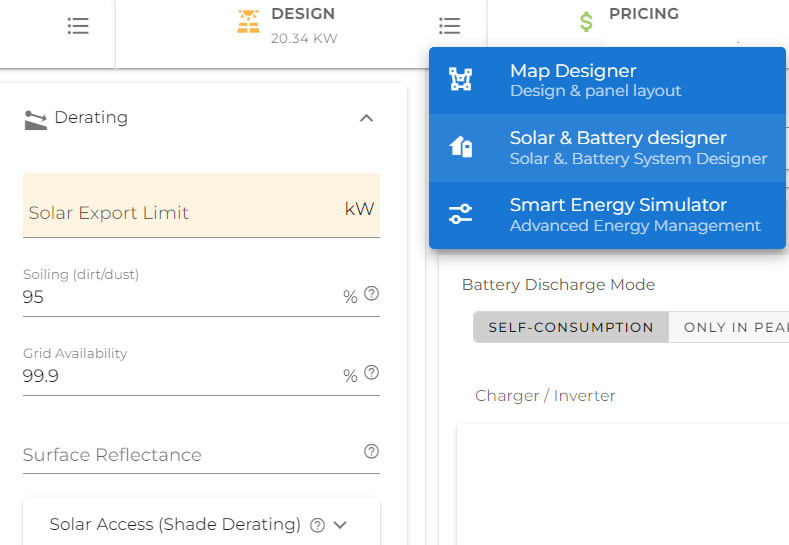

Different derating factors are available in SolarPlus in the “Solar & Battery designer” view:
Field | Use case |
---|---|
Solar export limit | To limit the export to the grid (leave this field blank if there’s no export limit; a '0' value input will stop all export to the grid) |
Soiling (dirt/dust) | Entered as a % factor (i.e., 95% means a 5% reduction in the annual energy output) |
Grid availability | Entered as a % factor (i.e., Grid availability of 99% means there are grid outages / blackouts 1% of the year) Creates random times when the Grid is not available due to blackouts. During a blackout:
|
Surface reflectance | Called as albedo factor - used for system designs with bifacial panels. Select the required surface type based on its albedo factor |
Solar access (shading / shade derating) | Entered as a % factor for each month (i.e., 95% in January means a 5% reduction in energy output for the month) |
Factor | Description | Data Source | Normal range |
---|---|---|---|
Global horizontal irradiance | How much solar energy falls on a flat surface at the site location | MeteoNorm weather data | |
Irradiance on an inclined plane | How much solar energy falls on the surface at the tilt angle and azimuth that the array has been set to. | MeteoNorm weather data, and the surface setting on the design page. | |
Shading | Losses caused by near (trees and buildings) and far (mountains) object shading | Can set a default value in Business Settings > Quote preferences. Can set a site-specific value in the Solar & Battery Designer page | |
Soiling | Lost production due to dirt on the panels | Can set a default value in Business Settings > Quote preferences. Can set a site-specific value in the Solar & Battery Designer page | -1 to -10% |
Transmittance | The amount of solar energy that passes through the glass/plastic of the PV module | Based on whether the module has anti-reflective coating (specified in datasheet and recorded in the Product Library) | -1 to -3% |
Array converted energy | How much of the available solar energy is converted to electrical energy. | Based on the datasheet values of each panel, and calculated using Cubas equivalent cell method | |
Cell temperature loss | When PV cells get hot, they are less efficient. | MeteoNorm air temperature records for the site Mounting method of the PV module (specified in BoS section on Design page) Module datasheet values | |
Tolerance | loss/gain associated with manufacturer’s specifications | Datasheet value | 0 to 5% |
Mismatch | losses due to panel power mismatch. lower for micro-inverters and optimisers | Can be adjusted in BoS section on Design page | -0 to -2% |
DC cable & Connector | Voltage drop losses | Based on cable specs in BoS section on Design page, and array current. | -0.5 to -5% |
Inverter clipping | Losses when the PV Array DC output power is higher than the Inverter AC max power (oversizing) | Inverter datasheet value, compared with PV output | |
Inverter efficiency | Losses from MPPT and converting DC to AC | Inverter datasheet value | -2 to -5% |
AC cable losses | AC Voltage rise losses on the Inverter Feed cable. (does not consider sub-main, | Based on cable specs in Solar and Battery Designer, and Max inverter current, and export limit. | -0.5 to -3% (ideal) |
System efficiency | The total system efficiency | All de-rating factors above. | 75-85% |
